Reconstruction of a railway bridge over the Výmola creek in Úvaly u Prahy
construction works within complete reconstruction of the bridge, Viamont DSP a.s.
Project name: MODERNISATION OF A RAIL SECTION, PRAGUE BĚCHOVICE – ÚVALY, BRIDGE 387.144 KM (VÝMOLA)
Contractor: Viamont DSP a.s.
Position of LKM Consult: SUBCONTRACTOR for implementation of monolithic structures, building management
Termination: 09/2015
Project Description

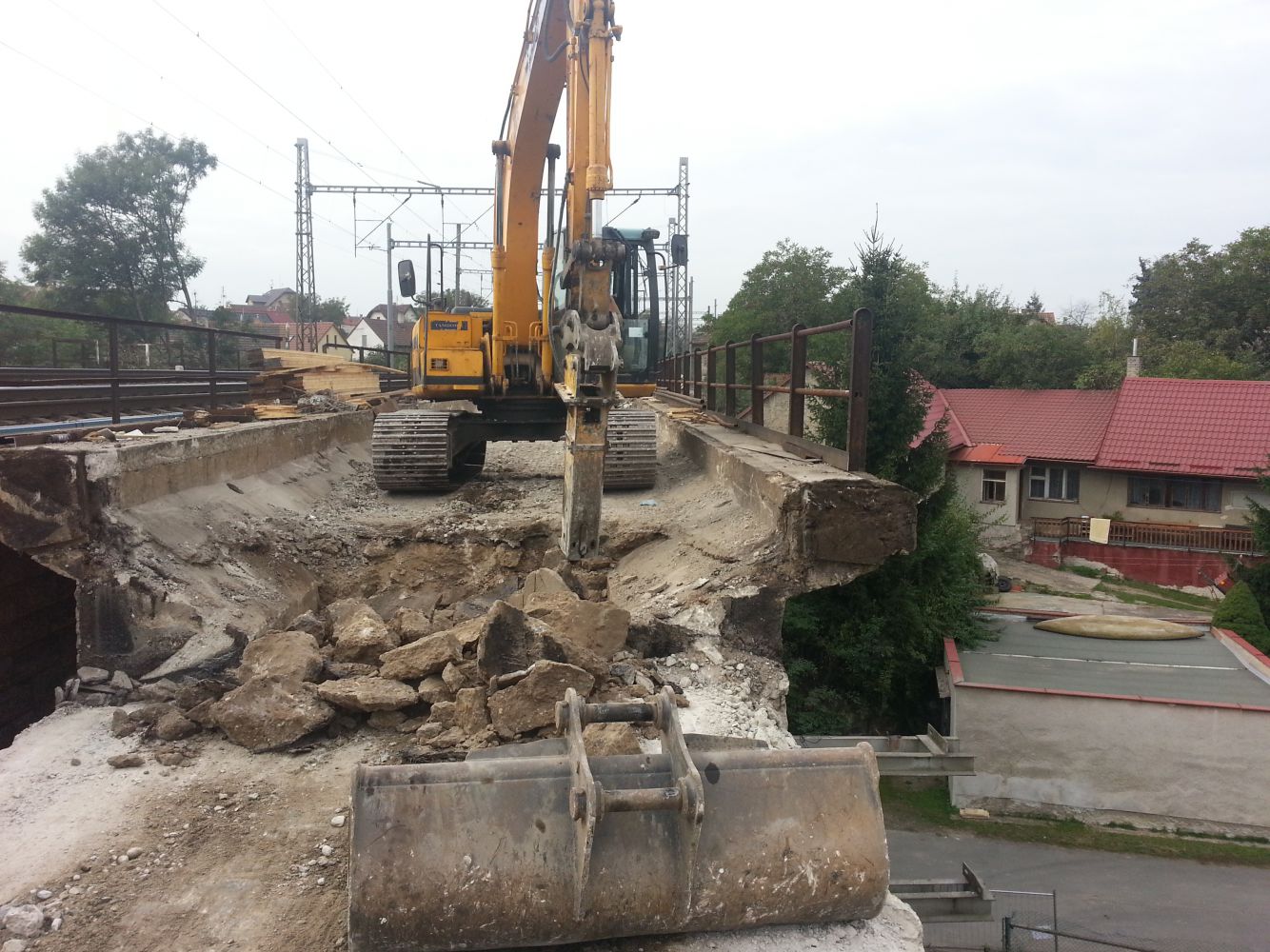

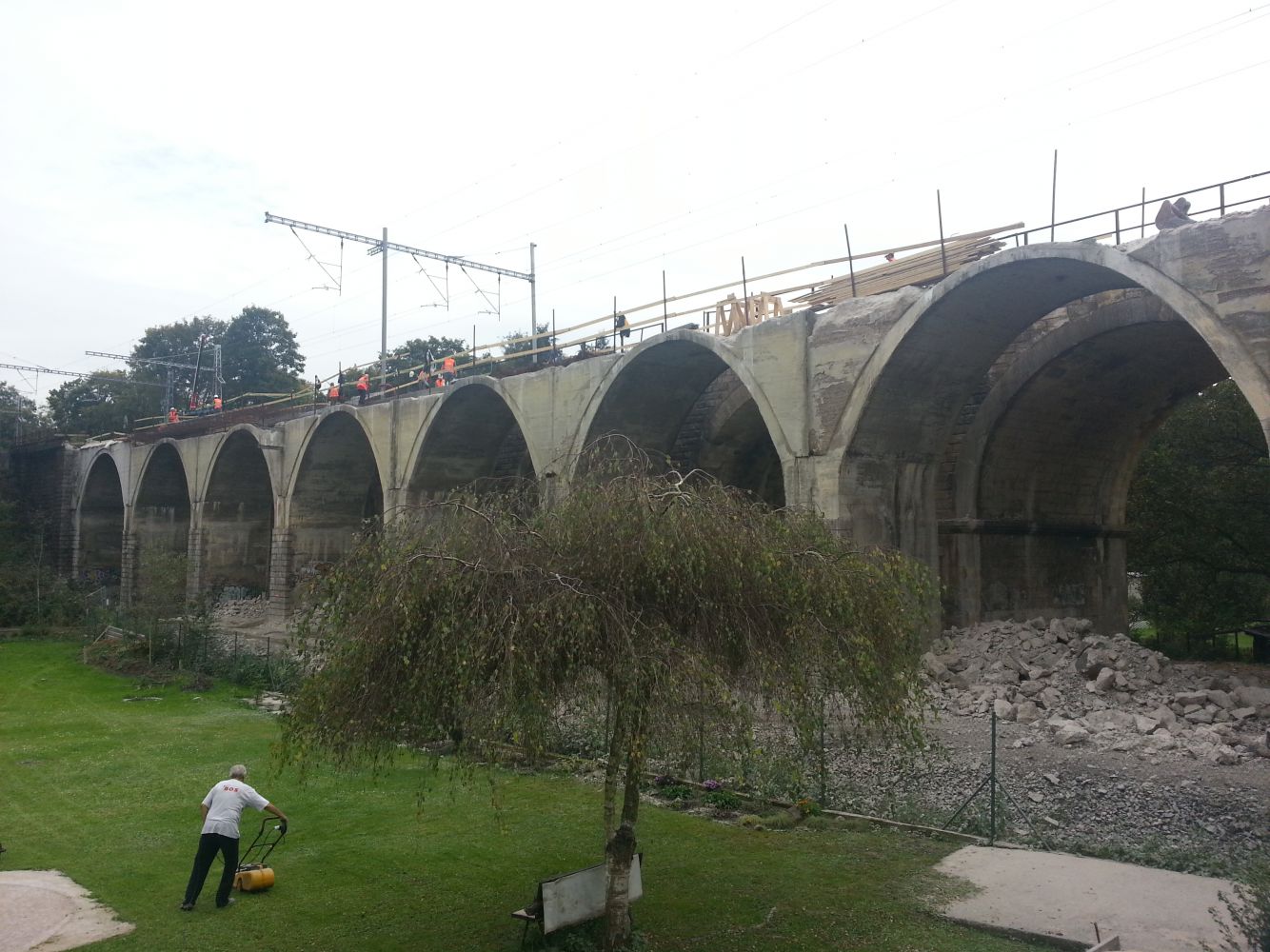

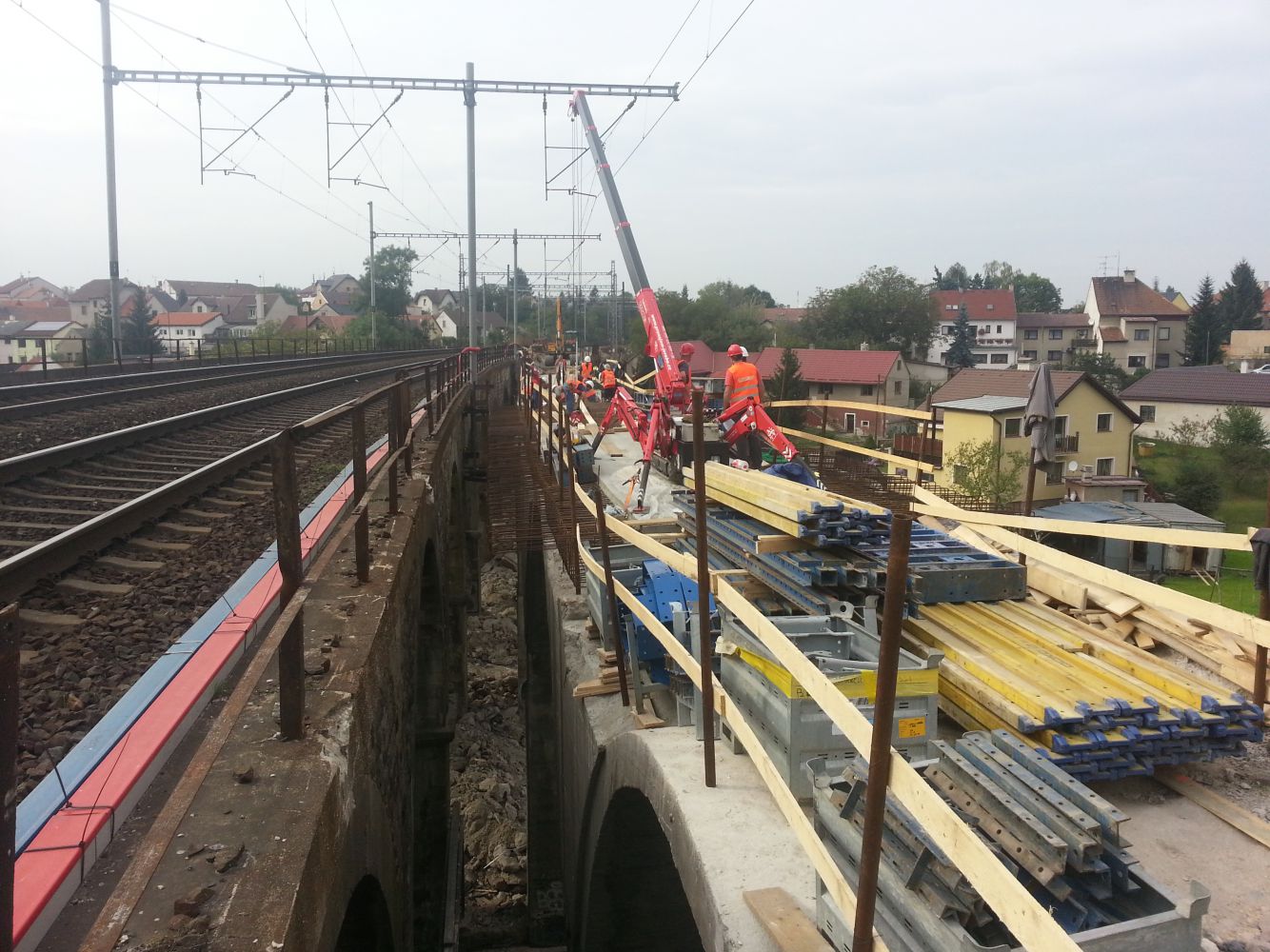

The reconstruction of the arch bridge with nine parabolic arches with 9.70 m long spans and a total length of 132 m involves construction of a new RCC slab with overhanging consoles including follow-up structures. The main part of the bridge was constructed using DOKA overhead moveable form traveller, and the parts near abutments were constructed using stationary scaffolding. The construction proceeded in a tight space, within width of the arch section – just one 4.1 m wide.
LKM Consult delivery:
- construction management and coordination of operations on the bridge deck
- preparation of the concreting equipment and concreting management for the bridge deck on a DOKA moveable form traveller
